E-Motion X

Brings the entire car seat outside the vehicle for both drivers and passengers.

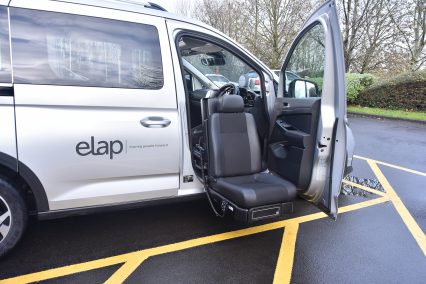

The E-Motion X is a seat lift that will allow the user to get seated outside the vehicle, before being comfortably lifted to a safe position inside. Having the car seat completely outside of the vehicle and at a height of choice can be very helpful when getting seated or making the transfer from a wheelchair.

The unique feature of the E-Motion X is its control function memory. This enables the E-Motion X to revert back to the customers ideal driving position when the vehicle door is closed.

KEY POINTS

  • Can be installed on driver, passenger or mid row positions
  • Powered lift and swivel
  • Generous lifting height
  • Adjustable comfort position
  • Built-in foot rest
  • Built entirely in die-cast aluminium which offers maximum rigidity and strength with minimum weight
  • The movements, mechanisms and motors have been positioned to create a very compact device
  • The thickness of the base under the seat is only 90 mm therefore not compromising on head room
  • 270 mm internal movement, 110 ° rotation, 540 mm outgoing translation, 400 mm downward travel
  • Pinch protection
  • Back rest can be easily adjusted with a single lever operation once the door is closed to offer maximum comfort
  • The system control unit memorises the position chosen by the user, returning the seat to the same position every time we perform the mechanism routine and close the door with a forward travel of up to 150mm
  • A flush keypad is supplied as standard. A wireless keypad is an optional extra
  • Unit weight 62kg
  • SWL 150kg
  • Manual override function
  • No drain on the battery when the door is closed
  • Armrest options available
  • Specific and universal brackets available
  • Fully crash tested
  • 15,000 cycle tests
  • EMC tested
  • CE Marked
  • Available on the Motability Scheme
